Video annotation

Video preview

The process of video annotation does not differ significantly. However, there are a few crucial features available when working with video materials only.

Keyframe

Video is a sequence of images annotated in a row. The interpolation function allows users to annotate every 5/10/... frame instead of annotating every single frame Stacking order. To find out more about interpolation go here.
Frames where any action was performed (creating/editing/moving), are called keyframes. You can move between keyframe-on-2xkeyframes with the help of arrow-2-left arrow-2-rightbuttons or shortcuts Up and Down . Non-key frames keyframe-off-2x are images where no actions were performed. You can also delete the keyframe by clicking on the keyframe icon delete-keyframe (X).
💡

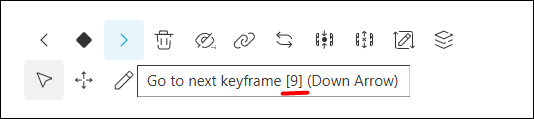

In the object toolbox and next to each attribute in the attributes form, on arrow-2-left (prev keyframe) and arrow-2-right(next keyframe) buttons, tooltips include the frame number of the prev./next keyframe.


notion image
On frames where there is no keyframe, clicking the button keyframe-add-2x-1 will preserve the current interpolated value as a keyframe.When multiple objects are selected, the keyframe indicator will show an empty diamond keyframe-off-2x to indicate that none of the selected objects has a keyframe on the current frame, a full diamond keyframe-on-2x to indicate that all the selected objects have a keyframe on the current frame, or a half-full diamond keyframe-off-2x-3 to indicate that only some of the selected objects have a keyframe on the current frame.
Clicking the keyframe indication will create keyframes for all the objects that are missing a keyframe on the current frame, or if all the selected objects have a keyframe on the current frame, will delete the current keyframe for all of the selected objects.

Object visibility

The platform allows to manage object's visibility. When an annotated object disappears from the video you can turn it off by clicking pass-hide or O . If you turn the object off in one frame but it is annotated on the subsequent frames, the platform will offer you to make the object not visible from now on or only to the next keyframe.
You can make an object visible onwards at any moment by clicking pass-showor O .

Merge and split

If one object was annotated with two masks you can merge them into one without the need of redrawing and deleting instances. The function merges two objects by taking all instances of one up to the current frame and all instances of the other from the current frame onwards and joining them into one.
For example, you have a 100-frame video. A car was annotated as Car_1 from Frame 9 to Frame 23, and the same car was annotated as Car_2 from Frame 25 to Frame 89. You can merge Car_1 and Car_2 into one object. To do so:
  1. Select the object from an object list tools-objects (i) or right-click it.
  1. Click merge_position-2 and then click the other object in the list.

💡
If you merge object 1 with object 2 on Frame 20, all the instances of object 2 will be discarded in the subsequent frames.

You can also split merge_position-6 an object at the current frame, making the selected object invisible from the current frame onwards, while creating a new object that takes up all instances that have been removed from the selected object if, for example, two objects have been annotated with one mask.

More on the interpolation function
