🔘 Mesh object annotation

Add new object

1. Click "Add object" button or you can use one of the suggested shortcuts(N/Ctrl+Shift+1..0)

2. Click at the necessary point to start annotation.

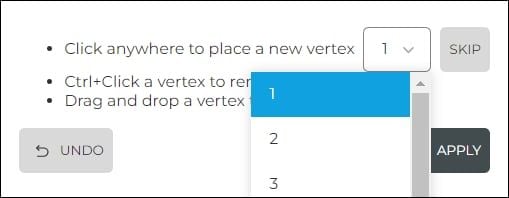

3. Keep clicking to add new vertexes in a row or choose vertex from the drop down menu.

4. Click “Apply” (E) to finish object creation.

5. Ctrl+Clicka vertex to remove it.

6. Drag and drop a vertex to move it.

Select an object

Right-click on the object or choose it from the list of objects ( i).

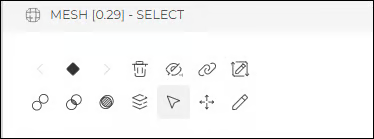

Change object type

You can change object types within one annotation shape. If you have a few Mesh objects in the list (i), you can swap the type of the existed object, to do so:

1. Select an object.

2. Click .

3. Choose one of the given options in the drop-down menu.

Delete an object

1. Select an object.

2. Click or Backspace.

Bind objects

To bind objects in a pattern Parent > Child do the following:

1. Open the list of objects or i.

2. Select a Child object.

3. Click or  .  and then click the Parent object.

/To unbind objects select the pair and click or  . .

Redraw

1. Select the object.

2. Click or R .

3. Draw a new mask.

4. Click “Apply” (E) to finish object creation.

Change the Stacking order

1. Select the object.

2. Click and choose one of the options from the drop-down menu.

Move the object

1. Select the object.

2. Click (]) and drag the object.

3. Click “Apply” (E).

Edit the object

1. Select the object.

2. Click ([).

3. Ctrl+Click a vertex to remove it.

4. Drag and drop a vertex to move it.

5. Click “Apply” (E) .
